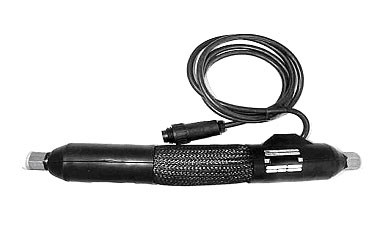

HEATED HOSE

Whenever media needs to be transported from a device or a system to some other part of the device or system, and the piping cannot be rigidly installed, flexible heated hose lines can be used for transportation purposes. In the majority of applications, it is a requirement to maintain the product temperature at a constant level, irrespective of the temperature fluctuations in the system or the ambient temperature.

Why are heating hoses used

	so as to keep media flowable for processing
	to achieve their optimum characteristics for processing
	to avoid the formation of condensate in gaseous media
	to process economically
	to ensure uniform quality
	to enable production or measurement at any location
	to connect moving parts and equipment

Technical Data

	Available in 350mm, 450mm and 1000mm with ½” BSP threaded end fittings and 10mm exit bore with short delivery time. The 10mm bore end fitting has a maximum compression load at 250 C of dynamic 195 bar static 309 bar and a minimum bend radius of 175mm.
	Hoses up to 2000mm long with a range of bore sizes and end fittings are also available by special order
	Stainless steel end fittings
	Polished internal bores to reduce material flow problems
	Heat resistant outer coating
	PTFE internal sleeve
	Heat is transferred to the end of the hose to reduce ‘cold ‘ areas
	Removes the need to use rigid pipe system
	Fully flexible to ease connection
	Can be easily integrated with the existing extrusion system
	Suitable for heating up to 250 degrees

DN	Bore Diameter of Fitting	BDN-KS	Max Compression Load	Min Bend Radius
Hose size	Mm	flat packing	250?C operating temperature
8	6mm	R 16x1,5 or G3/8”	dynamic 225 bar static 360 bar	85mm
10	7.5mm	R 18x1,5 or G1/2”-3/8”	dynamic 204 bar static 324 bar	110mm
12	10mm	R 22x1,5 or G1/2”	dynamic 195 bar static 309 bar	140mm
16	12 mm	R 26x1,5 or G3/4”	dynamic 180 bar static 288 bar	175mm
20	16mm	R 30x2 or G1”	dynamic 160 bar static 252 bar	205mm
25	20mm	R 36x2 or G1 ¼”	dynamic 125 bar static 200 bar	249mm

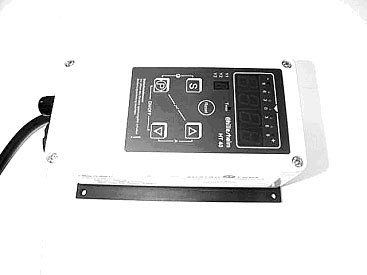

CONTROL BOX SERIES HT 43

The temperature controller HT 43 is a universal controller for machine building, plant and apparatus construction due to its compact design. During the design of this device, special attention was paid to simple and clear operations.

	Designed to control a single heated hose
	Digital control on all aspects of operation
	All parameters can be set.
	The non-contact switch capacity is 2300 watts
	All heating hoses in the standard ranges have a 7-pin plug that fits precisely to this controller
