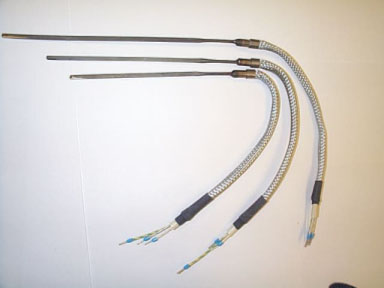

GLOSS HEATERS



    Available in sizes 100, 125, 150, 175, 200 & 250
    Other sizes available on special order
    Protective heatproof sleeve to eliminate wire melt when installed in the die
    3 wire connection system which can be fitted to your own plugs



    The sizes stated above refer to the heated flat part of the heater, for all other dimensions please refer to the drawing below.

    Description
    Watts
    Volts
    A
    B
    C
    D
    E
    F
    WRP/F 100
    85
    48
    2.2
    4.2
    100
    7
    35
    135
    WRP/F 125
    100
    48
    2.2
    4.2
    125
    7
    35
    160
    WRP/F 150
    150
    48
    2.2
    4.2
    150
    7
    35
    185
    WRP/F 175
    150
    48
    2.2
    4.2
    175
    7
    35
    210
    WRP/F 200
    150
    48
    2.2
    4.2
    200
    7
    35
    235
    WRP/F 225
    150
    48
    2.2
    4.2
    225
    7
    35
    260
    WRP/F 250
    150
    48
    2.2
    4.2
    250
    7
    35
    285

    Areas indicated as D & E are unheated areas.
